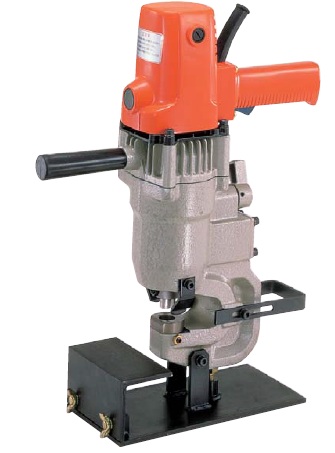

Self-contained hydraulic punch shows its power in making round or elongated holes in flat bar, angle bar or channel iron.
Here is a video showing its operation :-
- For up to 125×65 mm channel iron
- Max. Punching Diameter 19 mm and 6 mm thickness
- Designed for safety with built-in relief valve
Specification
Model
|
E55-0619
|
||
Power Source (Single Phase)
|
115 V AC, 50/60 hz
|
220-240 V AC, 50/60 Hz
|
|
Motor
|
Rated Power Consumption
|
670
|
670
|
Rated Current (A)
|
6.0
|
3.0
|
|
Max. Punching Diameter (mm)
|
19
|
||
Max. Punching Thickness (mm)
|
6
|
||
Max. Throat Depth (mm)
|
55
|
||
Punching Time sec(Single pass)
|
2
|
||
Power Cord (m)
|
2.4
|
||
Mass (kgs)
|
14
|
